Basic Info.
Model NO.
NDH-13000
Specification
4200x2200x2500MM
Trademark
NESTO
Origin
China
Product Description
Introduction

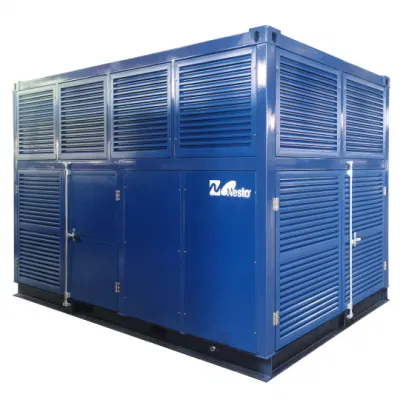

Nesto Dehumidifier is designed specially for internal tank blasting and coating operation in equatorial and tropical climate conditions.

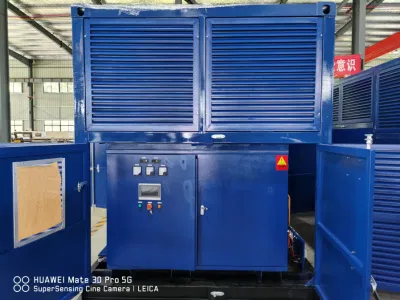

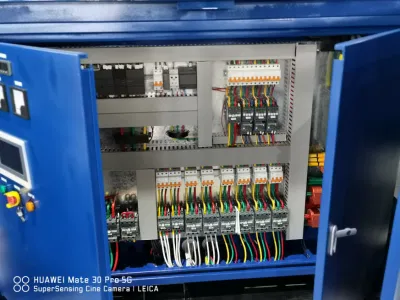

The unit also comes complete with a speciallydesinged control panel and can be easily transported by crane or forklift.
Specification
Components Brand
Quality Assurance and Service
1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
Nesto Dehumidifier is designed specially for internal tank blasting and coating operation in equatorial and tropical climate conditions.
The unit also comes complete with a speciallydesinged control panel and can be easily transported by crane or forklift.
Specification
| No. | Item | Unit | Description | |||||
| 1 | General | |||||||
| · Dehumiditifier Model | NDC-13000B | |||||||
| · Blower Fan Capacity | CMH | 13,000 | ||||||
| · Refrigerating Capacity | kW | 230 | ||||||
| · Inlet Temprature/ Humidity | ºC/% | 20~40ºC / 60%~95% | ||||||
| · Outlet Temprature/ Humidity | ºC/% | 22~28ºC / ≤45% | ||||||
| · Power Supply | 380V/3Ph/50Hz | |||||||
| · Refrigerant | R22 or R407C | |||||||
| · Overall Size (W x D x H) | mm | ≤4200x2200x2460 | ||||||
| · Weight | kg | 4000 | ||||||
| · Total Power Consumption | kW | 147 | ||||||
| · Discharge Nozzles (Size & Quantity) | No | Φ280mm*4 | ||||||
| 2 | Refrigerant Compressor | |||||||
| · Type of Compressor | Screw Compressor | |||||||
| · Compressor Quantity | 1 | |||||||
| · Compressor Power | kW | 60 | ||||||
| 3 | Refrigerant Condenser | |||||||
| · Type (Tube or Plate) | Copper Tube, Anti-corrossive Aluminum Fin | |||||||
| 4 | Refrigerant Evaporator | |||||||
| · Type (Tube or Plate) | Copper Tube, Anti-corrossive Aluminum Fin | |||||||
| 6 | Reheater | |||||||
| · Power | kW | 54 | ||||||
| 7 | Blower Fan | |||||||
| · Power | kW | 15 | ||||||
| · Static Pressure | Pa | 2000 | ||||||
| 8 | Condenser Fan | |||||||
| · Power | kW | 3kW*6 | ||||||
Components Brand
| Item | Specs, Model | |||||||
| Compressor | Bitzer (Germany) or R efComp (Italy) | |||||||
| Expansion Valve | Emerson (USA) | |||||||
| Pressure Controller | Danfoss (Denmark) | |||||||
| System Filter | Emerson (USA) | |||||||
| Heater | HANWAY | |||||||
| Evaporator | HANWAY | |||||||
| Condenser | HANWAY | |||||||
| Supply Fan | SHANGHAI Jinyongli / Dewow | |||||||
| Condensate Fan | Rainbow | |||||||
| Disconnect Switch | CHINT | |||||||
| Contactor | Schneider / ABB | |||||||
| Breaker | Schneider / ABB | |||||||
| PLC | Siemens | |||||||
| HMI | WEINVIEW | |||||||
| Temprature & Huminity Sensor | KNWS | |||||||
Quality Assurance and Service 1. Have a complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
Welcome to your inquiry!
